WEEK 4 PROGRESS

I have completed all of my drawings and began working on my assembly.

Drawings

I began creating all of my drawings.

ZLSAP-205 SPRING

ZLSAP-301 CASE LID

ZLSAP-108 EYELET

ZLSAP-205 SPRING

1/11

PARTS

I updated some of the parts I already had created.

TUBE PT 2

back side inner body

CAM SPRING PT 2

TUBE PT 2

1/3

Assembly

I attempted my first sub-assembly. Which went terribly wrong. My lids don't match up due to the radii and my hinge/hinge hole was too big/not deep enough.

ASSY 1

I need to alter these parts to align better.

ZLSA 2

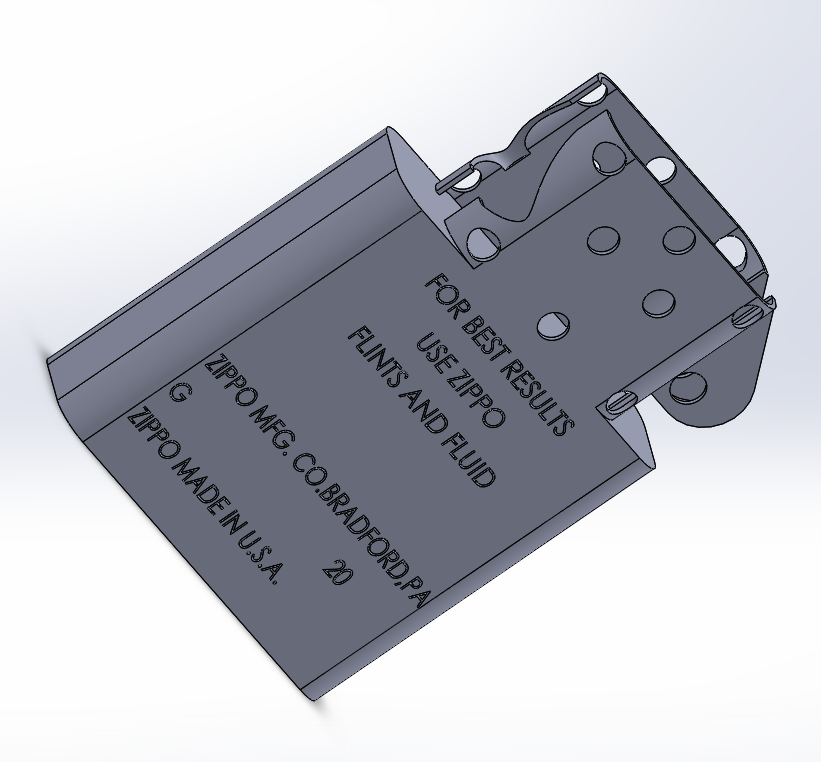

The sub-assembly for the inner body went smoothly. Still need to add the cam and cam rivet.

ZLSA 2

I assembled the inner body, only issue I am having is mating the spring and spring tip together.

ASSY 1

I need to alter these parts to align better.
