This week I focused on the inner body of my Zippo lighter. There is still one portion that I need to complete it. Fortunately I was able to finally demonstrate the "bend" in my Cam Spring, still need to do the one for the inner body. I also un-soldered the remaining parts that I was not able to remove before. I also began working on the drawings for the parts I have completed and naming them correctly.
Week 3 Drawings
This week I focused on the inner body of my Zippo lighter. There is still one portion that I need to complete it. I also un-soldered the remaining parts that I was not able to remove before. I also began working on the drawings for the parts I have completed and naming them correctly.
Week 3 Drawings
This is the bottom outside case cover of my Zippo.
I added the knurling on the wheel and created my drawing.
For my screw I added the knurling on the side and finalized my drawing. I still have to work on dimensioning or annotating my thread.
This is the bottom outside case cover of my Zippo.
Updated Models
I was able to correct/finalize a few more models.
I update my flint wheel to have the diamond knurled pattern.
I created the foam filler for the inner body.

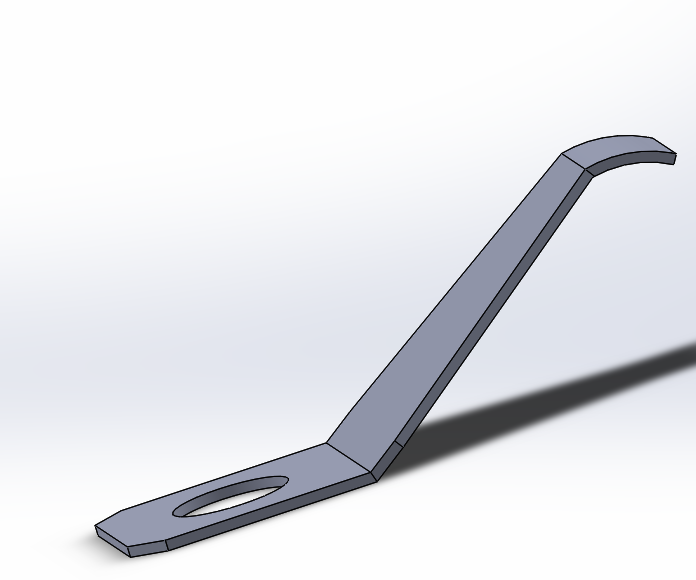

I was able to recreate the bend in my cam spring.
I update my flint wheel to have the diamond knurled pattern.
